PUMI 28-4

Truck Mixer Concrete Pump with 4-Arm Placing Boom

The original PUMI® by Putzmeister combines pump, mixer and placing boom in a single machine. It is an addition to the fleet of truck-mixers held by service and customeroriented suppliers of ready-mixed concrete and significantly extends the range of jobs they can take on: a PUMI® is particularly economic wherever truck-mounted concrete pumps are too expensive or too big and inflexible or wherever truck-mixer conveyor belts are not adequate. In particular, it can be operated cheaply and quickly in small construction sites up to approximately 20 m³.

Key Features

  • Mixer drum from high-strength special steel, extremely wear-resistant over maximum service life
  • 4-arm placing boom with optimised slip characteristics
  • Optional Variable support system
  • Safe operation with a lighting concept for improved illumination of the control points and setup locations
  • Torsion-resistant integral frame ensuring longer service life
  • Various pump technologies available Q, S or CS-pump
  • Userfriendly with modern Ergonic 2 control

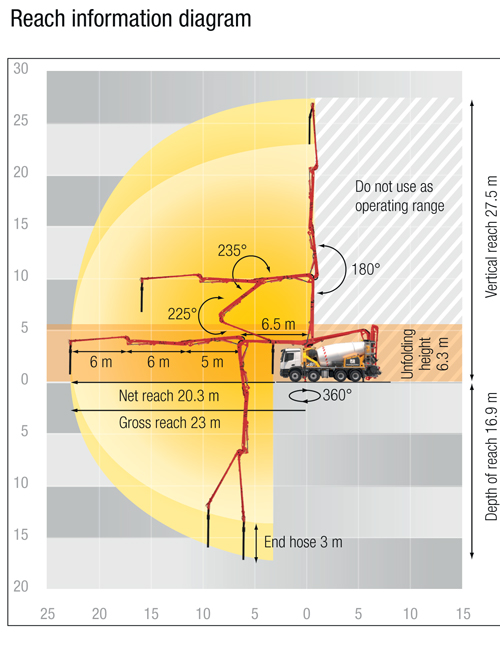

Technical Details

General Information

  • Number of sections
    4
  • Boom Style
    Z-Folding
  • Vertical Reach
    27.5 m
  • Horizontal Reach
    23.0 m
  • Reach from Front of Truck
    20.3 m
  • Reach Depth
    16.9 m
  • Unfolding Height
    6.3 m
  • End Hose Length max.
    3 m
  • Delivery Line (DN + Pressure)
    DN100 / 85 bar
  • Nominal Fill
    7 m³
  • Filling Ratio
    60 %
  • Drum Speed
    1-14 rpm
  • Water Tank
    630 l
