M24-4 2023

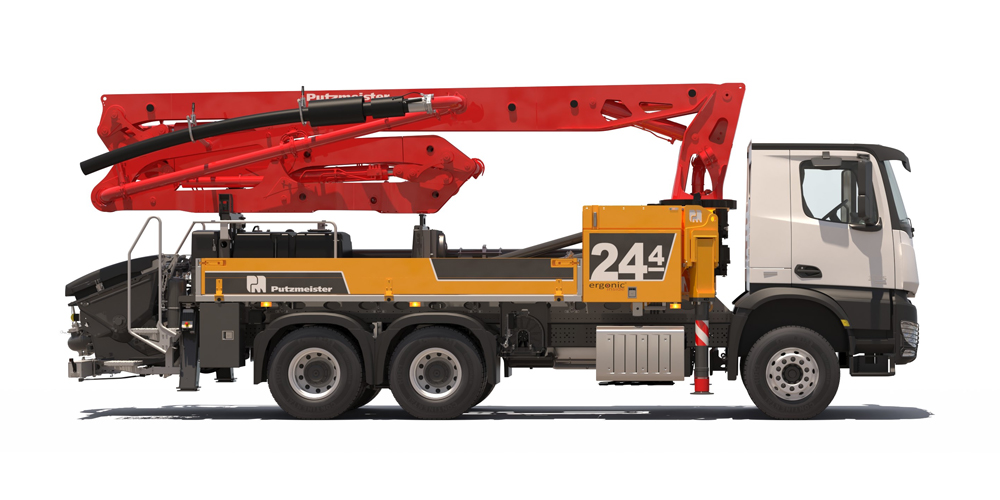

M24 with Z roll-and-fold system – whenever space is tight
The M24 truck-mounted concrete pump only requires a small space and yet offers big benefits. Small to medium universal construction sites with restricted set-up situations particularly play to its strengths.

A truck-mounted concrete pump that delivers a particularly impressive performance in buildings, tunnels and low buildings, when building bridges and during renovation work with hoses and pipes that can be aligned flexibly.

Link to Reach Forecast App for M24-4 with Ergonic3, EU-Version

iSC Full-Flex - Video

Ergonic® Control System by Putzmeister

Ergonic Inside 3 - Broschure

Broschure

Data Sheet

20m class Storage Concept EN

iSC Brochure EN

Key Features

Variatey of possible applications– with (almost) no limits!
Support – space-saving and infinitely variable!
Storage space – for all requirements!
Maximum pump performance – proven and innovative!
Safety – with every step! Everything is geared towards making the daily work of machine operators and service employees as easy and safe as possible.
Operation – truly simple, truly clever! The operation is intuitive and practical, making even concreting in low buildings very simple.

Technical Details

General Information

Arms: 4
Folding Type: ZR-Folding
Vertical Reach: 24.1 m
Horizontal Reach gross: 19.8 m
Reach Depth: 13.4 m
Unfolding Height: 4.7 m
End Hose - Length: 4 m
Delivery Line (DN, Pressure): 125/85 mm/bar
Support width Standard (front-rear): 4.5 - 2.6 m
Support width OSS (front-rear): 3.5 - 2.6 m
Support width ESC (front-rear) : 2.6-4.5 - 2.6 m
Length: <10 m
Height: <4 m

Configuration

Concrete Pump .11 H

Delivery Cylinder Diameter - Stroke Length: 230/1400 mm
Output (piston side): 110 m³/hr
Delivery Pressure (piston side): 78 bar
Strokes (piston side): 32

Concrete Pump .16 H

Delivery Cylinder Diameter - Stroke Length: 230/2100 mm
Output (rod side): 160 m³/hr
Delivery Pressure (rod side): 85 bar
Strokes (rod side) : 31

Concrete Pump .15 iLS

Delivery Cylinder Diameter - Stroke Length: 250/2100 mm
Output (piston side): 150 m³/hr
Delivery Pressure (piston side): 83 bar
Strokes (piston side): 24

All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
