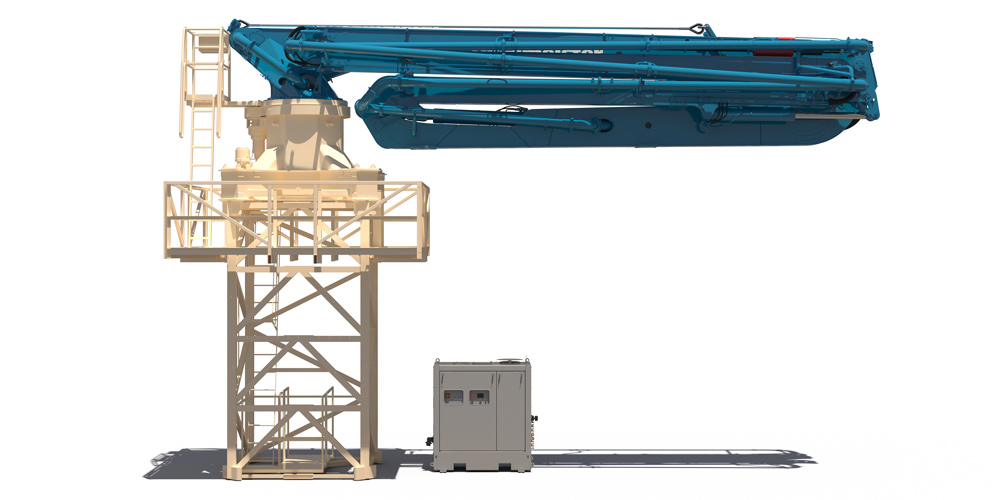

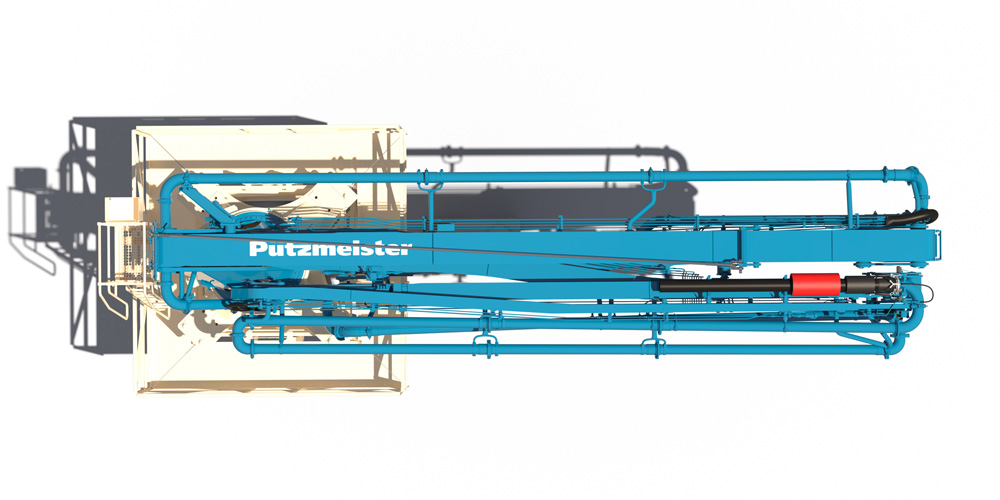

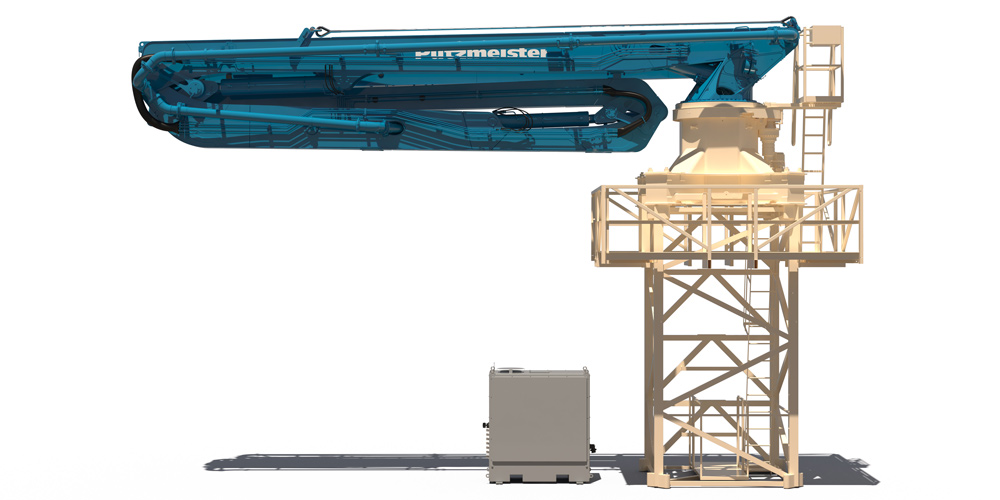

MXG 42-5

Freestanding Mounted Stationary Boom

MX stationary booms can also be mounted on crane lattice towers. It works seamlessly with towers produced by most well-known manufacturers. This system is primarily used in a situation where a project requires a horizontal reach between 36 m and 50 m. This is why they are commonly found in large construction sites. This includes use during the construction of dams, power plants and liquid gas tanks. Other applications also include construction of high-rise, LNG tanks and power plants.

Key Features

  • Pipes are fitted to the lattice tower in such a way as to save space
  • Quick set-up and dismantling of boom due to the rapid separation device between the boom pedestal and the lattice tower adapter
  • Anchoring at structure, for quick, freestanding mounting

Technical Details

General Information

  • Number of sections
    5
  • Boom Style
    RZ
  • Horizontal Reach
    41.1 m
  • Reach Depth
    35.4 m
  • Rotation
    365 degree
  • End Hose Length max.
    3 m
  • Delivery Line (DN + Pressure)
    DN 125
  • Weight
    13000 kg
